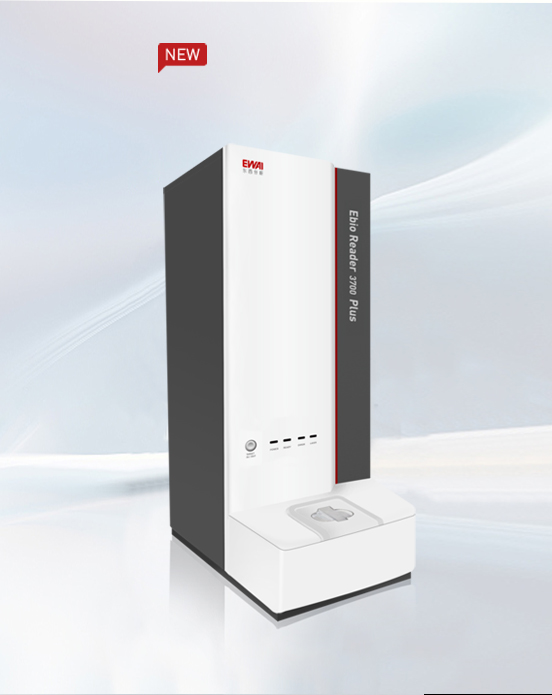

Ebio Reader 3700 Plus Time of Flight Mass Spectrometer is a multi-functional multi-purpose biodetector based on Time of Flight (MALDI-TOF) mass spectrometry. It is widely used in microbial identification, medical biomarker identification, gene mutation point detection, medical SNP detection, precision medicine guidance, food safety and animal and plant quarantine. The database contains more than 80,000 strains (including highly pathogenic bacteria such as plague and anthrax), and the authority can be traced back.

Medical apparatus registration certificate number: 20222220402.

Hardware system

Long life laser, frequency adjustable, energy adjustable, excitation times up to 10 billion

The flight tube is made of special materials with extremely low temperature coefficient to ensure the stability of the detection

High-efficiency mesh sieve ion source to improve instrument sensitivity • PIE high-voltage pulse power supply control to achieve delayed repulsion of ions and improve the resolution of the instrument

Upgradable negative ion module for negative mode detection • High-speed data collection card, data collection card with multiple FPGA functions, preprocessing the spectrum, significantly improving the quality of the spectrum

Reusable 96-hole target plate with optional disposable target plate

With visual target monitoring, target correction and automatic positioning functions

XYZ injection target plate drive platform, shortening the time required for vacuuming in and out of the target

Provide supporting detection reagents

software system

Authoritative and traceable strain database: All strains in the library come from domestic strains collected by the Chinese Center for Disease Control and Prevention since the founding of the People's Republic of China, covering clinical, disease control, environmental, soil, industrial, animal and plant fields (including highly pathogenic bacteria such as plague and anthrax, etc.)

It has the function of self-building library, and can establish its own strain library according to the actual situation of users

Microbial spectrum analysis and processing and strain search and identification, offline and online for users to choose

Operation interface: Chinese operation interface, the name of the microorganism in the identification result is displayed in both Chinese and Latin

Real-time module parameter monitoring

Generate mass spectrometry detection methods, users can generate different methods according to different experiments, which is convenient to call at any time

With cluster analysis function, data analytics such as T-test can be performed.

Classification and identification of artificial intelligence software based on neural networks

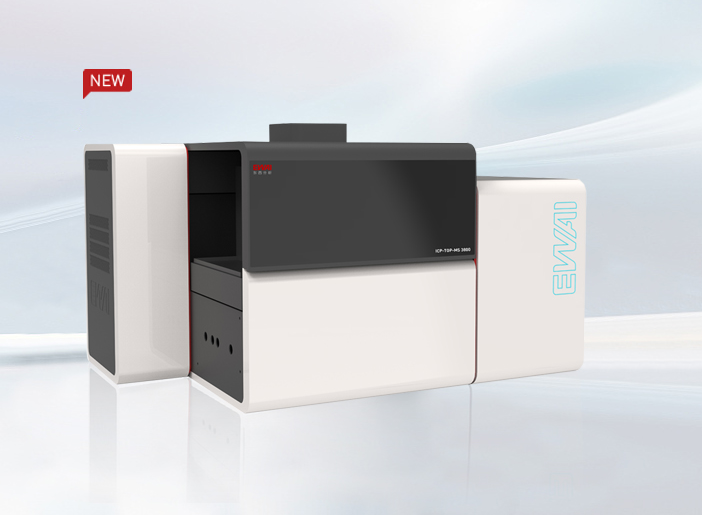

Low operating costs Instrument operating costs are very important for each laboratory. The ICP-TOF-MS 3800 has a fast analysis speed and far lower argon consumption than the quadrupole ICP-MS. It takes only 25 seconds to analyze the 20 elements in the sample ICP-TOF-MS 3800.

The argon consumption of the ICP-TOF-MS 3800 is 12L/min, because the analysis speed of the ICP-TOF-MS3800 is more than 5 times faster than that of the quadrupole mass spectrometer, making it more than ten times lower than that of the quadrupole when analyzing each element, which of course saves a lot of costs.

The new octapole colliding cell (OCC) addresses the technical advantage of the ICP-TOF-MS 3800 that can simultaneously analyze all mass numbers. The mass-independent octapole colliding cell (OCC) can perform interference management in sample analysis and remove all interfering ions in the full mass range. The OCC is located inside the ICP-TOF-MS 3800 for easy maintenance and maintenance.
