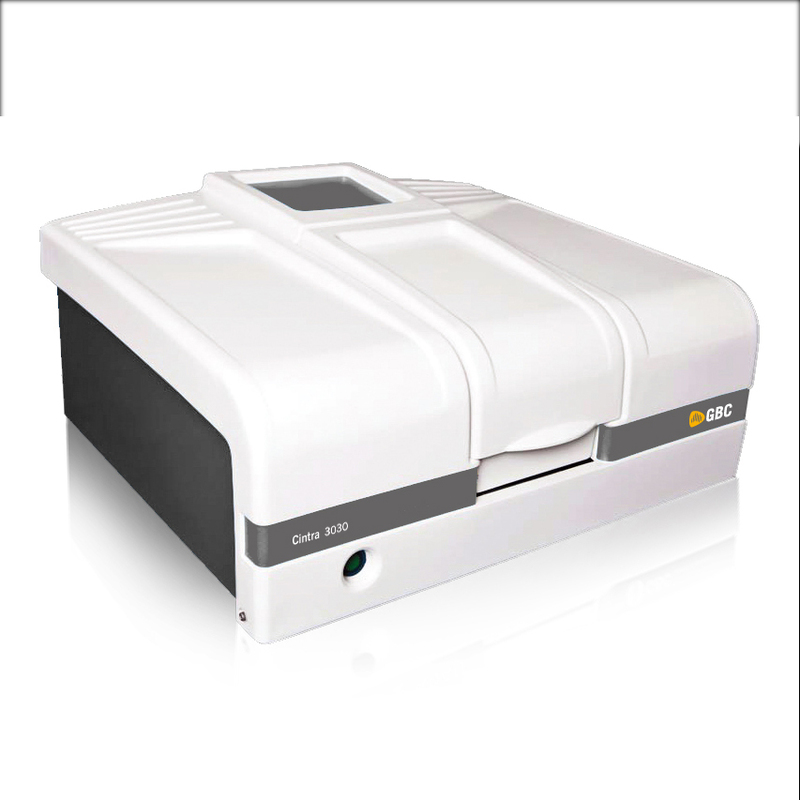

Cintra 1010/2020/3030/4040 UV Spectrometer

The dual-beam optical system features long-term stability, ensuring the accuracy of the measurement results. Good optical design ensures reliable and stable measurement results, even for UL-level sample quantities. Tests required by IQ/OQ, multiple national pharmacopoeias and other performance specifications can all be completed through the automatic system performance verification module of Cintral software. A variety of applications can be accomplished through software modules, such as routine testing, quantitative analysis, system performance verification, color analysis, kinetic/time studies, and DNA dissolution analysis, etc.

Request Quote

Cintra 1010/2020/3030/4040 UV Spectrometer

The Cintra 1010 is a practical model for general applications an economical dual beam of light instrument with low stray light levels and low noise.

The Cintra 2020 expandable model combines flexibility and functionality with a wide wavelength range from 190nm to 1200nm, low stray light levels, and low noise.

The Cintra 3030 is a high-end model for specific applications and research applications. Research-grade models with high sensitivity in the ultraviolet region. This model has a variable slit width in the range of 0.2nm to 5nm, resulting in good sensitivity and resolution, low stray light levels and low noise indicators;

Suitable for high-end applications, the Cintra 4040 is a dual beam of light, dual monochromator model with high resolution and sensitivity. With an adjustable slit width in the range of 0.1nm to 2.0nm and a dual Littrow monochromator in a Czerny-Turner layout, low stray light levels and better than 1.2% photometric linearity at 5 Abs can be obtained, resulting in high resolution. Wide dynamic range and excellent optical metrics make the Cin tra 4040 a UV instrument with good performance for high-end applications at the same price point;

Key Features

Look More

Cintra 1010/2020/3030/4040 UV Spectrometer

The Cintra 1010 is a practical model for general applications an economical dual beam of light instrument with low stray light levels and low noise.

The Cintra 2020 expandable model combines flexibility and functionality with a wide wavelength range from 190nm to 1200nm, low stray light levels, and low noise.

The Cintra 3030 is a high-end model for specific applications and research applications. Research-grade models with high sensitivity in the ultraviolet region. This model has a variable slit width in the range of 0.2nm to 5nm, resulting in good sensitivity and resolution, low stray light levels and low noise indicators;

Suitable for high-end applications, the Cintra 4040 is a dual beam of light, dual monochromator model with high resolution and sensitivity. With an adjustable slit width in the range of 0.1nm to 2.0nm and a dual Littrow monochromator in a Czerny-Turner layout, low stray light levels and better than 1.2% photometric linearity at 5 Abs can be obtained, resulting in high resolution. Wide dynamic range and excellent optical metrics make the Cin tra 4040 a UV instrument with good performance for high-end applications at the same price point;
